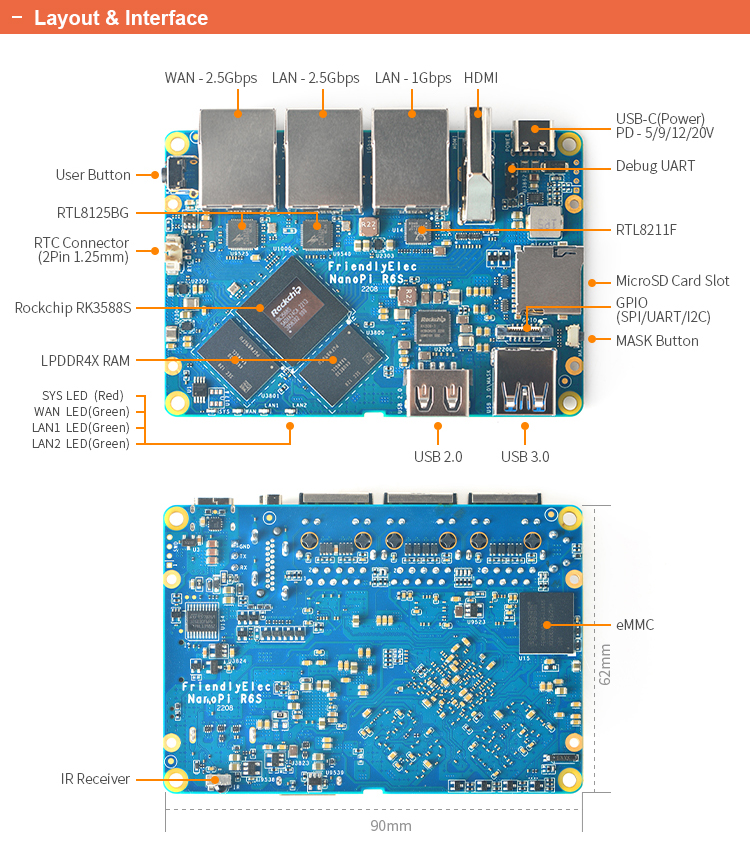

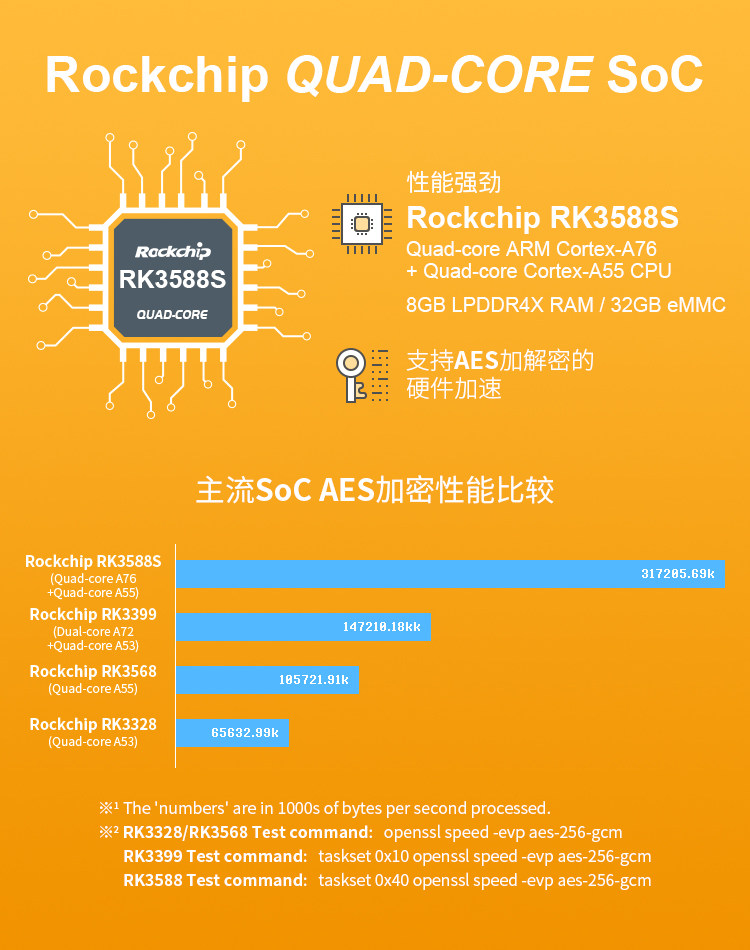

CPU Model: Rockchip RK3588S
Number of Cores: Quad-core ARM Cortex-A76 & Quad-core Cortex-A55 CPU
Frequency: 4xCortex-A76 up to 2.4GHz & 4xCortex-A55 up to 1.8GHz
GPU Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
VPU 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
NPU 6TOPs, supports INT4/INT8/INT16/FP16
Memory RAM: 64-bit 8GB LPDDR4X at 2133MHz
Storage MicroSD Slot: MicroSD x1, support up to SDR104 mode
Flash: 32GB eMMC, at HS400 mode

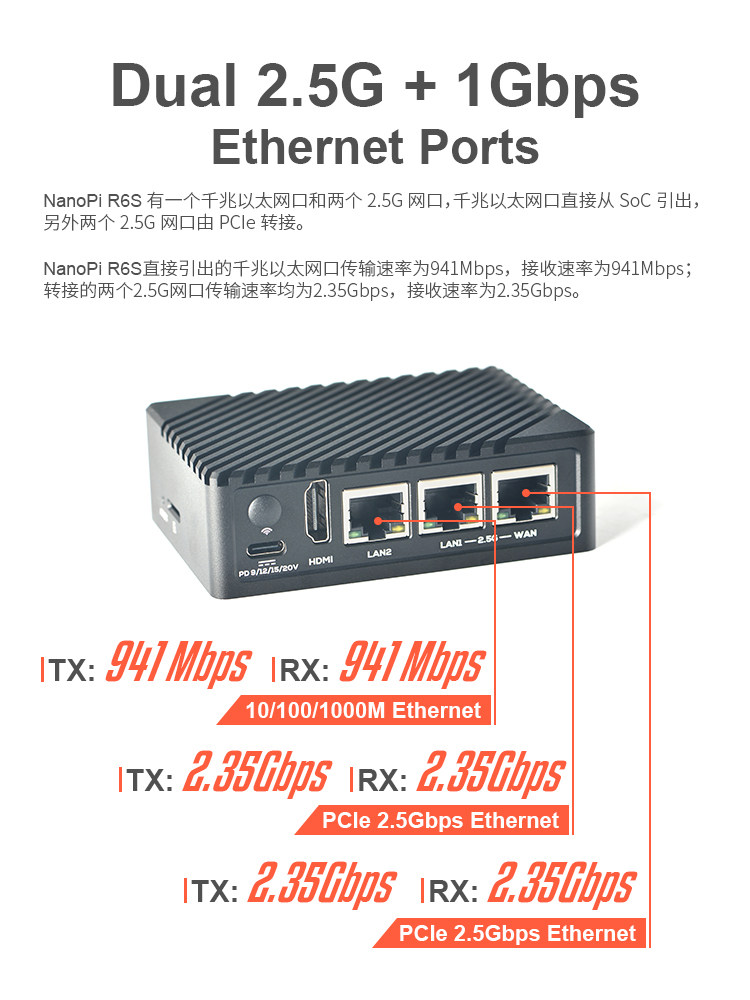

Connectivity Ethernet: Native Gigabit Ethernet x1, RTL8211F-CG chip
     PCIe 2.5G Ethernet Ethernet x2, RTL8125BG chip
Video Output HDMI: compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
    support up to 7680x4320@60Hz
    Support RGB/YUV(up to 10bit) format
USB USB 3.0 Host x1: USB Type A
USB 2.0 Host x1: USB Type A
USB-C x1: Power input(5V/9V/12V/20V), support PD
Pin-header GPIO: 12-pin 0.5mm FPC connector
   with up to 1x SPI, up to 3x UARTs, up to 1x I2Cs, up to 8x GPIOs
Debug: Debug UART x1, 3 Pin 2.54mm header, 3V level, 1500000bps

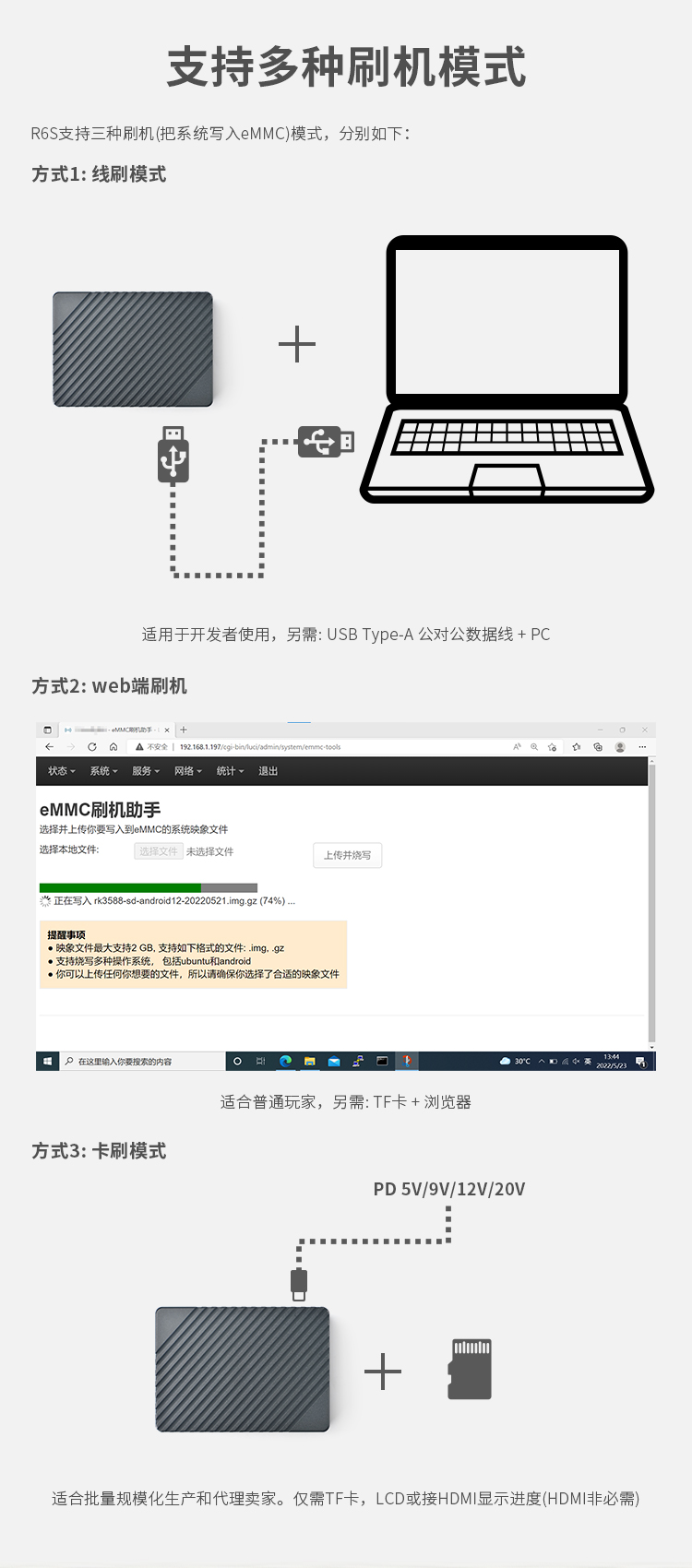

Button MASK Button x1 for eMMC update
User Button x1
LED PWR LED(Red) x1
WAN LED(Green) x1
LAN1 LED(Green) x1
LAN2 LED(Green) x1
Others RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
IR receiver x1 and the carrier frequency is 38Khz
Fan Connector(ZH1.5-2A) x1, 5V

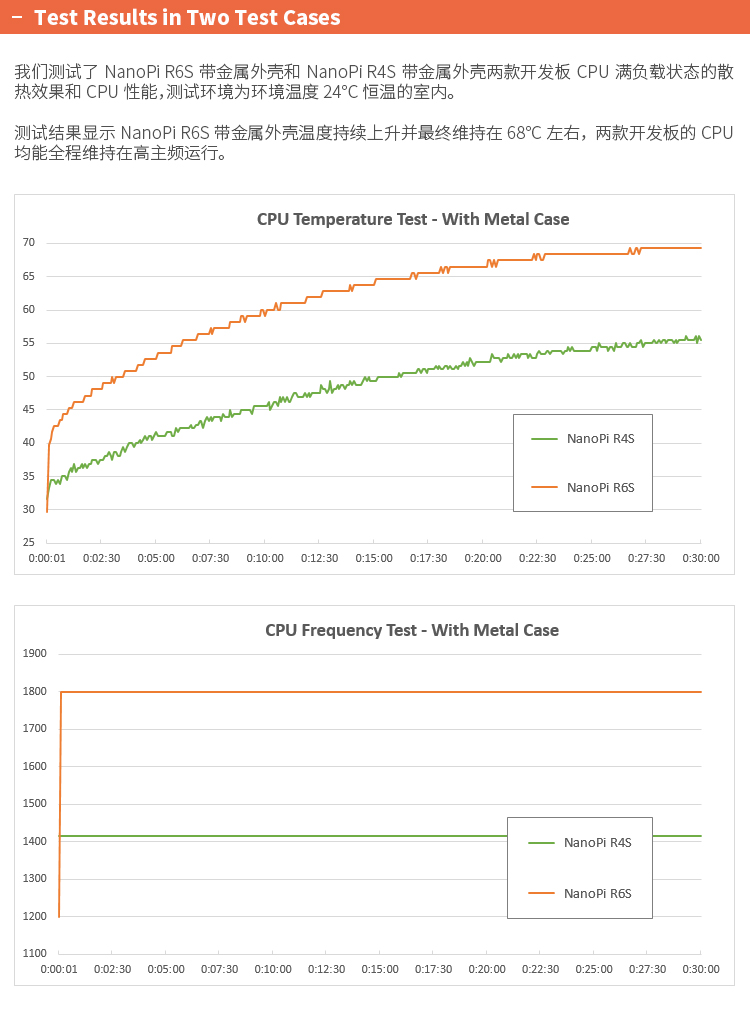

Working Temperature: 0℃ to 70℃
Power DC USB-C, support PD, 5V/9V/12V/20V input
PCB 8 Layer

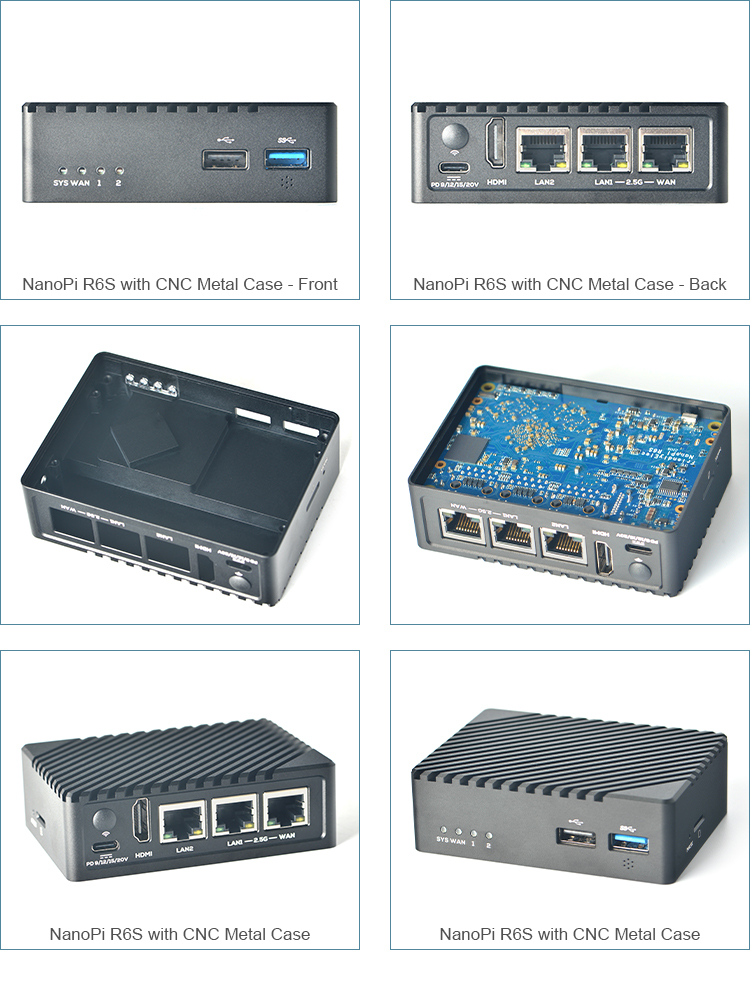

Dimension 62x90x1.6mm mm(without Case) / 68x94.5x30mm mm(with Case)
Weight 55.1g(without Case) / 262g(with Case)
PCB 8 Layer
Dimension 62x90x1.6mm mm(without Case) / 68x94.5x30mm mm(with Case)
Weight 55.1g(without Case) / 262g(with Case)
