| CPU | Model: Rockchip RK3588S Number of Cores: Quad-core ARM Cortex-A76 & Quad-core Cortex-A55 CPU Frequency: 4xCortex-A76 up to 2.4GHz & 4xCortex-A55 up to 1.8GHz |
| GPU | Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2 |
| VPU | 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder |
| NPU | 6TOPs, supports INT4/INT8/INT16/FP16 |
| Memory | RAM: 64-bit 4GB/8GB LPDDR4X at 2133MHz |
| Storage | MicroSD Slot: MicroSD x1, support up to SDR104 mode Flash: 32GB eMMC, at HS400 mode PCIe: M.2 M-Key, PCIe2.1 x1, support NVME, PCIe WiFi etc Onboard M3 PCB nut for mounting M.2 2280 module |
| Connectivity | Ethernet: Native Gigabit Ethernet x1, RTL8211F-CG chip PCIe 2.5G Ethernet Ethernet x1, RTL8125BG chip |
| Video Output | HDMI: compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation support up to 7680x4320@60Hz support RGB/YUV(up to 10bit) format |
| USB | USB 3.0 Host x1: USB Type A USB 2.0 Host x1: USB Type A USB-C x1: Power input(5V/9V/12V/20V), support PD |

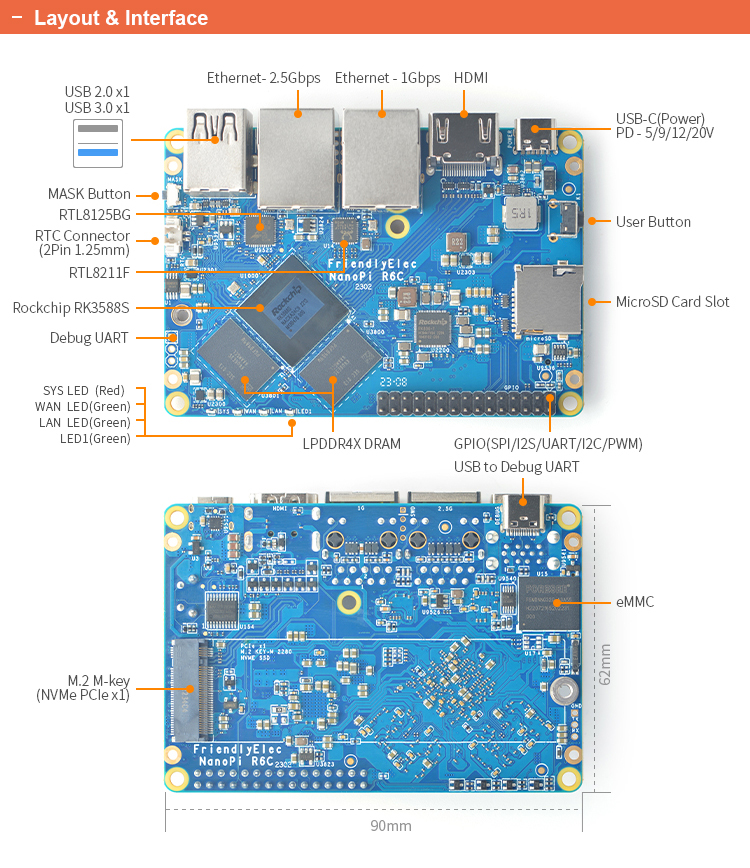

| Pin-header | GPIO: 30-pin 2.54mm header connector up to 1x SPI, 3x UARTs, 3x I2Cs, 2x SPDIFs, 1x I2Ss, 3x PWMs, 20x GPIOs Debug: Debug UART x1 via 3 Pin 2.54mm header, or on-board USB-C to UART |
| Button | MASK Button x1 for eMMC update User Button x1 |
| LED | PWR LED(Red) x1 WAN LED(Green) x1 LAN1 LED(Green) x1 LED1(Green) x1 |
| Others | RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS Working Temperature: 0℃ to 70℃ |
| Power | USB-C, support PD, 5V/9V/12V/20V input |
| OS Support | - Android 12 - FriendlyCore Lite 20.04 - Debian 10 Desktop - Debian 11 Desktop - Ubuntu 22.04 Desktop |
| Kernel version | - Linux-5.10-LTS - U-boot-2017.09 |
| PCB | 8 Layer |

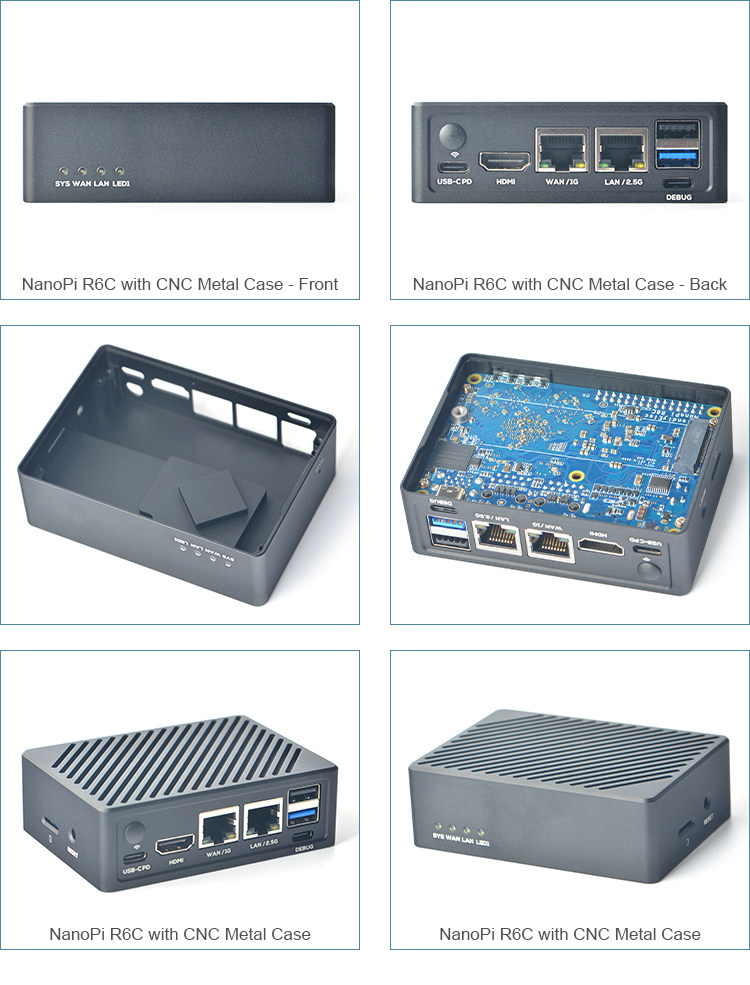

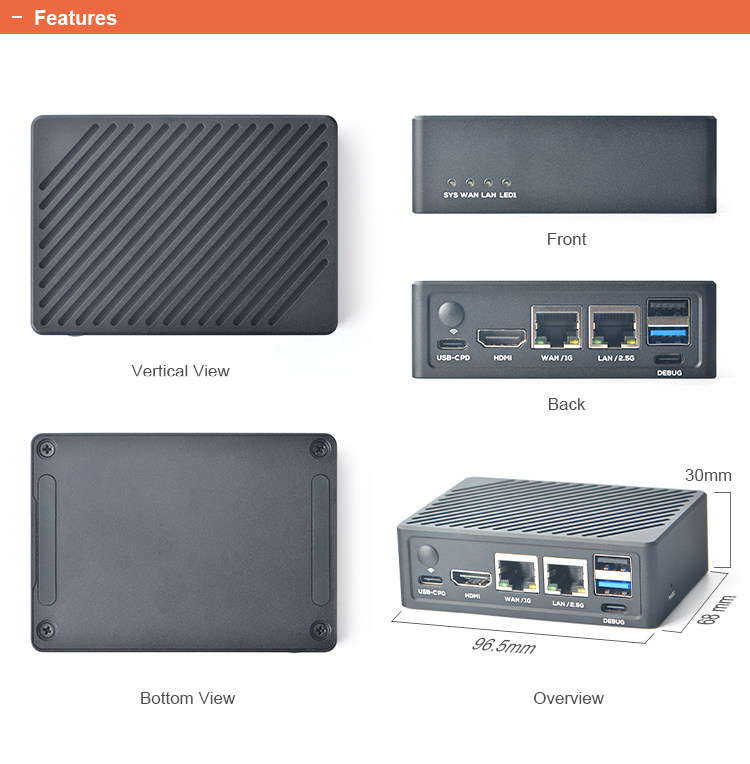

| Dimension | 62x90x1.6mm mm(without Case) / 68x94.5x30mm mm(with Case) |

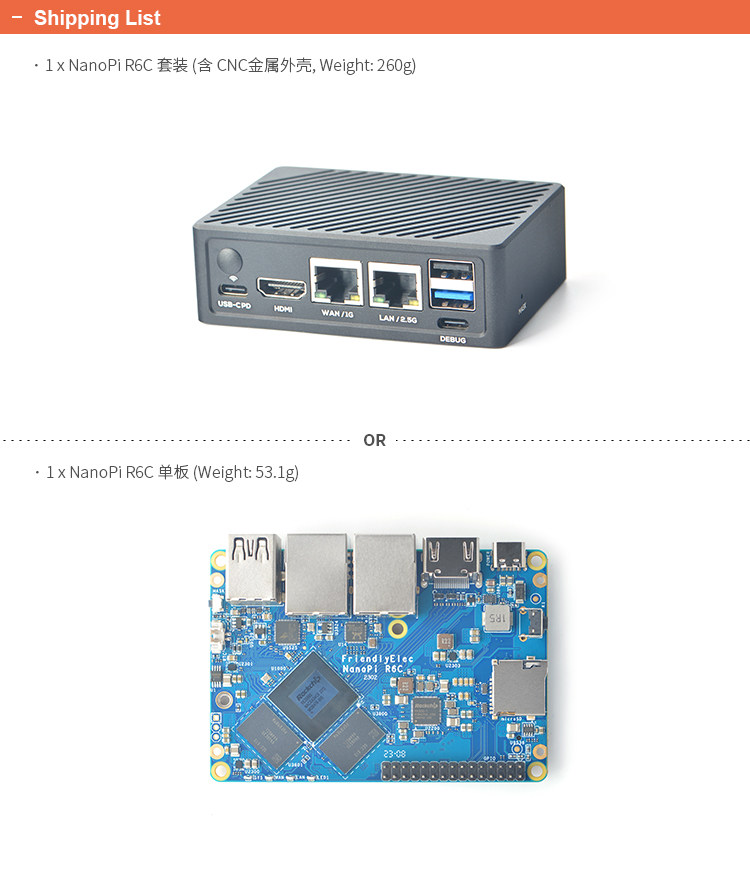

| Weight | 53.1g（without Case) / 260g（with Case) |
|
