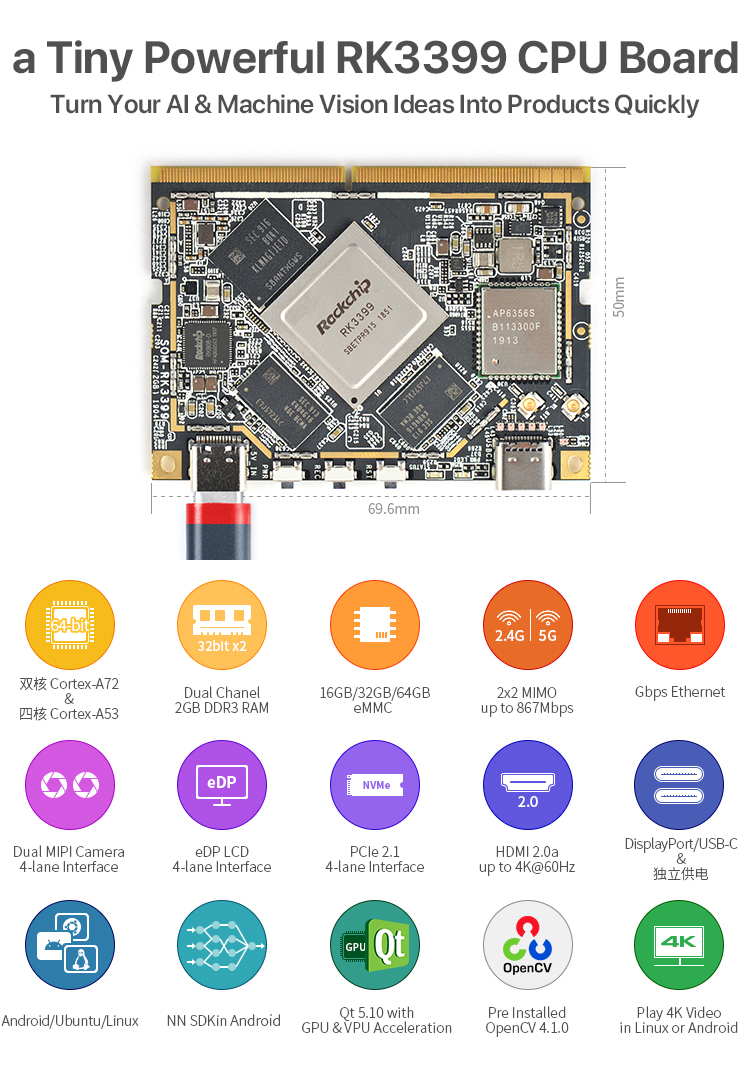

| CPU | SOC: Rockchip RK3399 Number of Cores: big.LITTLE, 64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53 Frequency: Cortex-A72(up to 2.0GHz), Cortex-A53(up to 1.5GHz) |
| GPU | Mali-T864 GPUsupports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, and AFBC |
| VPU | 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc |
| Memory | RAM: Dual-Channel 2GB DDR3 |
| Storage | eMMC: 16GB(regular), 32GB/64GB(optional), eMMC 5.1 |
| Power Management | RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, solfware power-down, RTC wake-up, system sleep mode |
| Connectivity | Ethernet: Native Gigabit Ethernet Wi-Fi: 802.11a/b/g/n/ac Bluetooth: 4.1 dual mode Antenna: Dual Antenna Interface |
| Video Input | one or two 4-Lane MIPI-CSI, dual ISP, up to 13MPix/ssupports simultaneous input of dual camera data |
| Video Output | HDMI: HDMI 2.0a, supports 4K@60HzHDCP 1.4/2.2 DP on Type-C: DisplayPort 1.2 Alt Mode on USB Type-C LCD Interface: one eDP 1.34-Lane10.8Gbps, one or two 4-Lane MIPI-DSI |
| USB | USB 2.0: 2 independent native USB 2.0 Host USB 3.0: 1 native USB 3.0 Host USB Type-C: Supports USB3.0 Type-C and DisplayPort 1.2 Alt Mode on USB Type-C |
| PCIe | PCIe x4, compatible with PCIe 2.1, Dual operation mode |
| SDIO/MMC | 1x SDIO/MMC for SD Card User Key x3 |
| Others | 2 X 1.8V I2C, 1 x 3V I2C 1 x 3V UART/SPI 2 x PWM 1 x IR-RX 1 x SPDIF_TX 1 x 1.8V I2S, 6 x 1.8V GPIOs, 8 x 3V GPIOs ADC: 3 x 1.8V ADC inputs |
| Debug | 1x Debug UART, 3V level, 1500000bps |
| LED | 1x Power LED(Red) 1x GPIO LED(Green) |
| Key | Power Key x1 Reset Key x1 Recovery Key x1 |
| Working Temperature | -20 to 70 |
| Power | DC 12V/1A(edge connector) or DV 5V/2.5A(Type-C) |
| OS Support | Android 7.1 with RKMC (Kodi) Android 8.1 with NN SDK Lubuntu 16.04 (32-bit) with GPU Acceleration FriendlyCore 18.04 (64-bit) pre-installed Qt-5.10, OpenCV4 with GPU & VPU Acceleration FriendlyDesktop 18.04 (64-bit) pre-installed Qt-5.10, OpenCV4, Chomium with GPU & VPU Acceleration Buildroot Linux: all are open source |
| Kernel version | Linux-4.4-LTS U-boot-2014.10 |
| PCB | 8 Layer, Thickness: 1.2mm |
| Dimension | 235.12x156.40mm(without antanna) |
| Weight | 17.95g |
|
