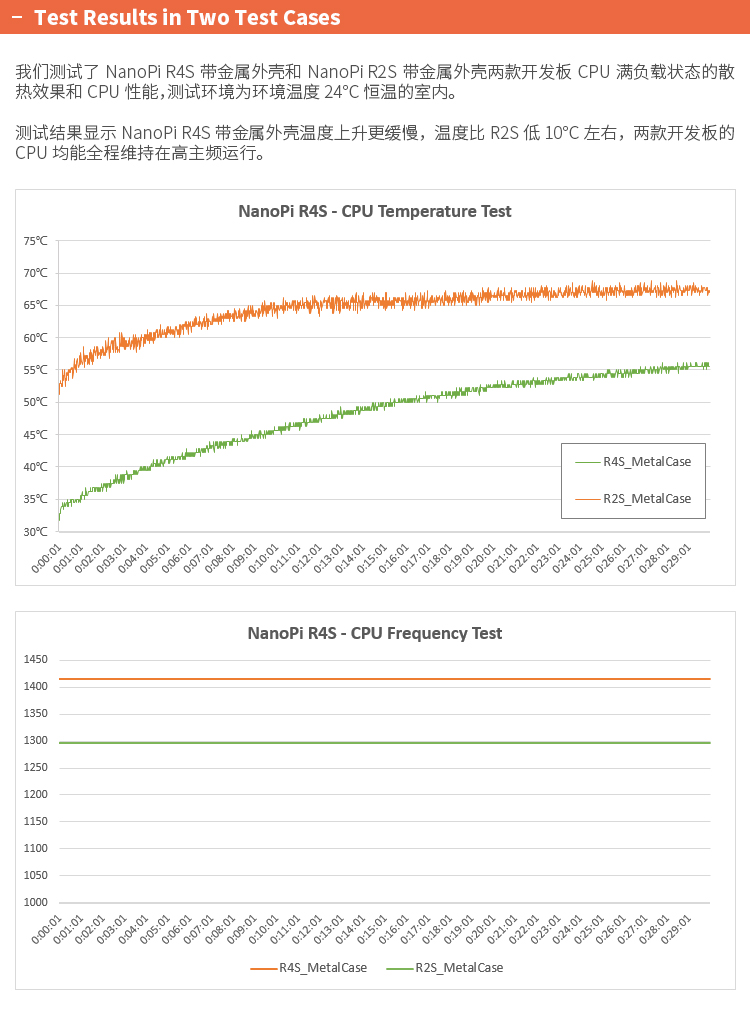

For detailed steps refer to��https://github.com/friendlyarm/cpu-temperature-test-script



CPU Model: Rockchip RK3399
Number of Cores: 64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53
Frequency: Cortex-A72(up to 2.0GHz), Cortex-A53(up to 1.5GHz)
GPU Mali-T864 GPU , supports OpenGL?ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL?, DX11, and AFBC
VPU 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
PMU RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
Memory RAM: 1GB DDR3/4GB LPDDR4
Storage Flash: no Onboard eMMC
MicroSD Slot: MicroSD x1 for external storage up to 128GB

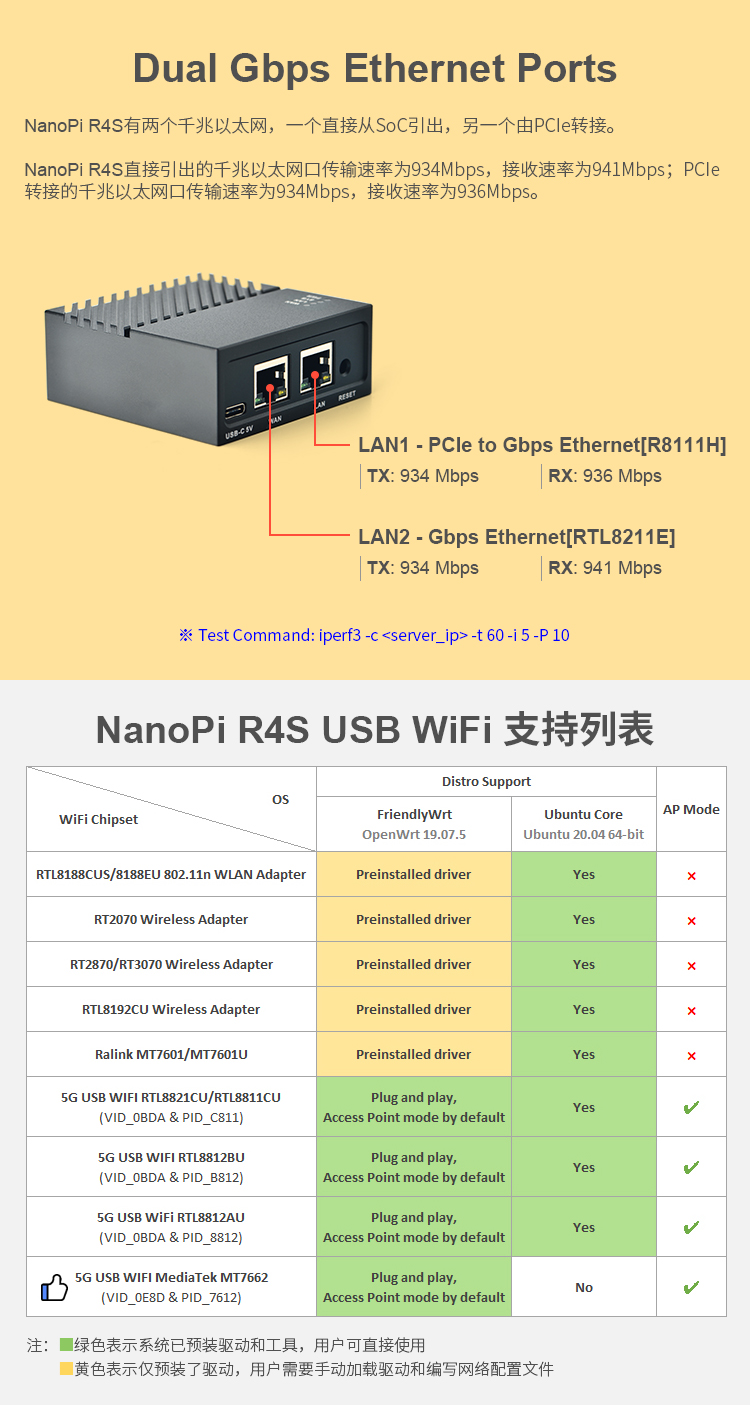

Connectivity Ethernet: Native Gigabit Ethernet x1
PCIe Gigabit Ethernet x1
USB USB 3.0 Host x2: USB Type A
USB 2.0 Host x1: 2.54mm 4pin-header
Type-C x1: Power Input Only
Pin-header GPIO: 2.54mm pitch 2x5pin-header, include I2C x1, SPI x1
Serial Debug Port x1: 2.54mm pitch 3pin-header, 3V level, 1500000bps
Button User Button x1
LED PWR LED(Red) x1
STAT LED(Green) x1
LAN LED(Green) x1
WAN LED(Green) x1
Others RTC: 2 Pin 1.27/1.25mm RTC battery input connector
Fan: 5V Fan connector
Working Temperature: -20�� to 70��
Power DC 5V/3A, via USB-C connector or Pin header

OS Support FriendlyCore 20.04 (64-bit) (Linux-4.19.111 + U-boot-2017.09)
FriendlyWrt 19.07.4 (64-bit) (Linux-5.4.75 + U-boot-2017.09)

PCB 8 Layer
Dimension 66x66 mm
Weight 40.90g(Without Case) / 310g(With Case)
