| CPU | Model: Rockchip RK3328 Number of Cores: Quad-Core Cortex-A53 Frequency: 4 x Cortex-A53 Up to 1.4GHz |
| Memory | RAM: 1GB DDR4 |
| Storage | MicroSD Slot: MicroSD x1 for external storage up to 128GB |

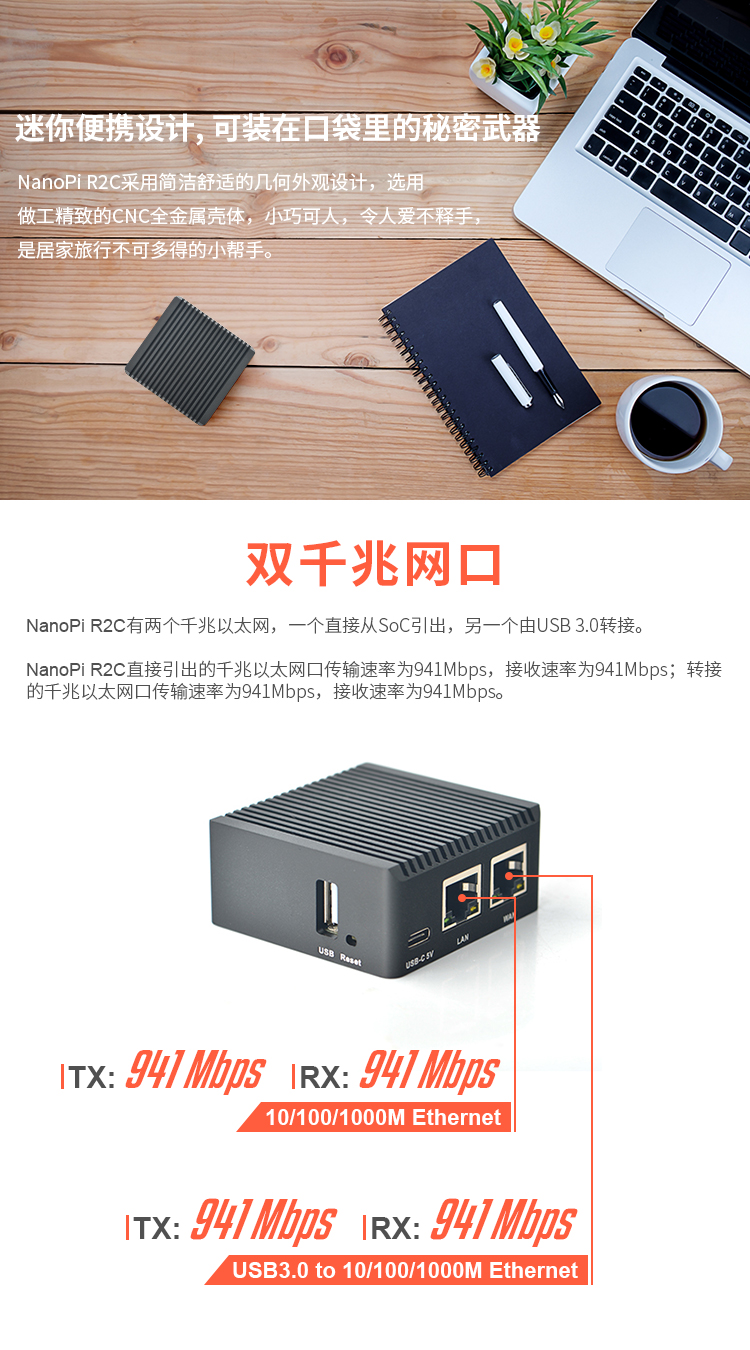

| Connectivity | Ethernet: Gbps Ethernet x1,YT8521S chip USB 3.0 to Gbps Ethernet x1 |
| USB | USB 2.0 Host x1: USB Type A MicroUSB x1: Power input(5V/2A) and Slave |
| Pin-header | Serial Debug Port x1: 2.54mm pitch 3pin-header(3.3V TTL) |
| LED | SYS LED(Red) x1 WAN LED(Green) x1 LAN LED(Green) x1 |
| Key | User Key x1 |
| Working Temperature | 0 to 80 |
| Power | DC 5V/2A |
| OS Support | FriendlyWrt 19.07-snapshot (64-bit) FriendlyCore Focal Lite (Base on Ubuntu 20.04) |
| PCB | 6 Layer |
| Weight | 76.38gWith Case) |
| Dimension | 60x60x29.5 mm |
|
