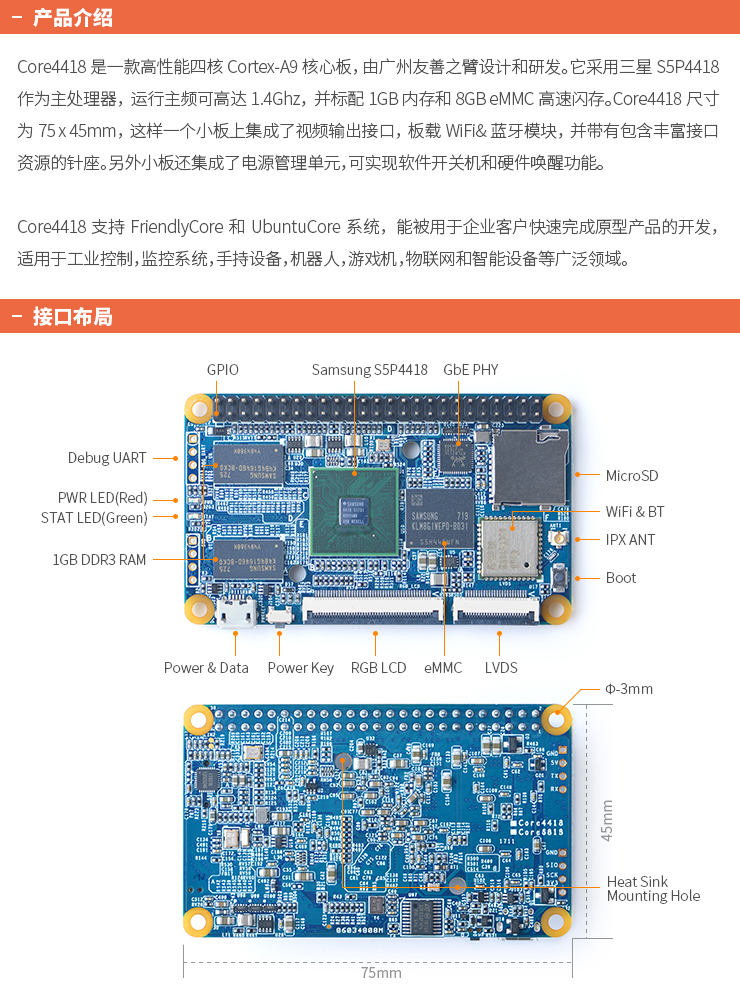

| CPU | Model: Samsung S5P4418 Number of Cores: Quad-Core Frequency: 4*Cortex-A9 Up to 1.4GHz |
| Memory | RAM: 1GB DDR3 |
| Storage | eMMC: 8GB MicroSD Slot: MicroSD*1 for external storage up to 128GB |
| Power Management | support dynamic voltage scaling,support software power-on, and RTC alarm power-on functions |
| Connectivity | Ethernet: Gbps Ethernet (4 MDI signalpairs and 2 LED signals in 2.54 pitch pin-header) Wi-Fi: 802.11b/g/n Bluetooth: Bluetooth 4.0 Antenna*1: IPX Connector |
| Audio | input/output Port (4Pin, included in 2.54mm pitch pin header ) |

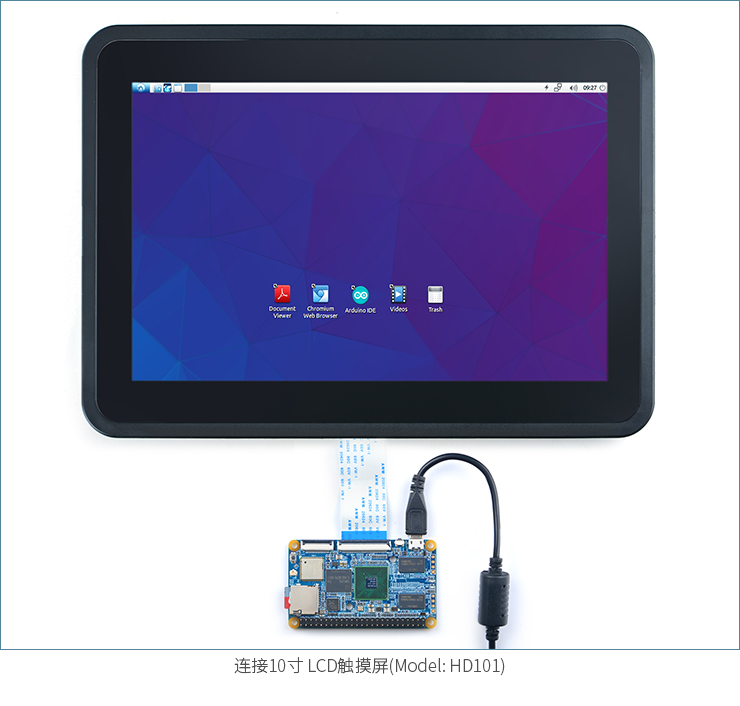

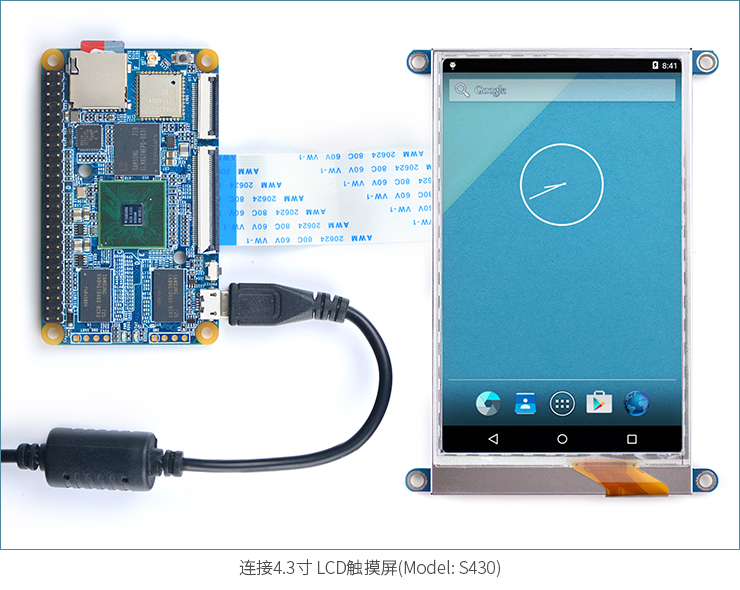

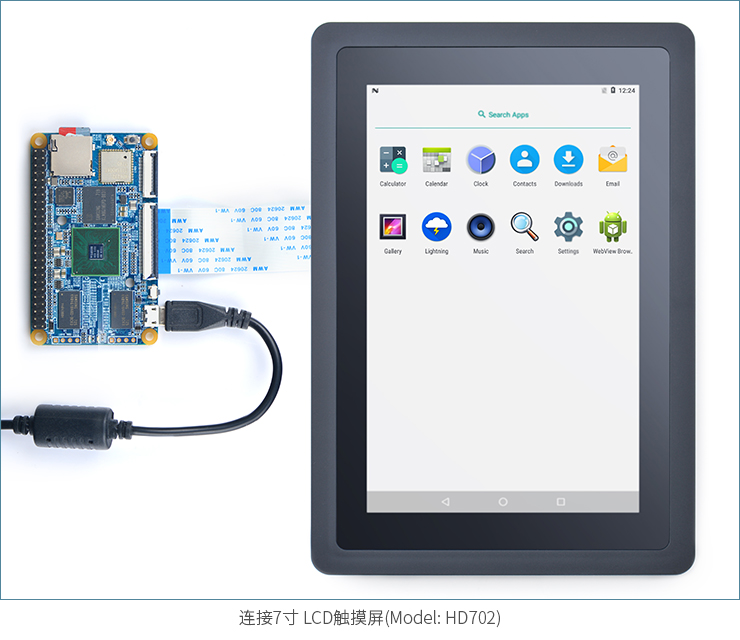

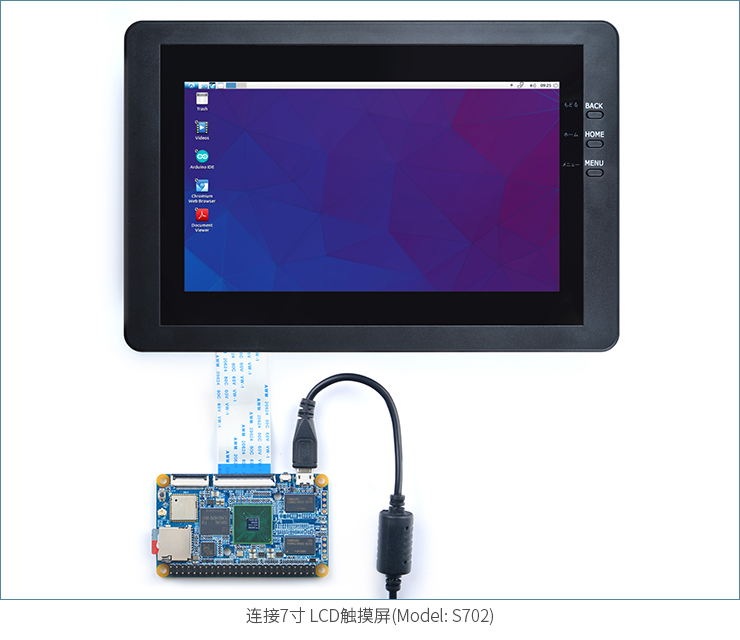

| Video Output | LCD Interface*1: Standalone 0.5mm pitch 45 pin FPC seat, full color RGB 8-8-8 LVDS*1: 24pin FPC Interface, include LVDS Signals, I2C, and 5V Power |
| USB | MicroUSB*1: Power & Data USB 2.0 Host*1 (included in 2.54mm pitch pin header) |
| Pin-header | GPIO: 2.54mm 25x2pin-header,containing I2C, RTC Battery in, GPIOs, SPI, UARTs, PWMs, Audio, Gigabit Eth, 5V Power in and etc. Debug Serial Port*1: 4pin pin holes |
| User Key | Power Key*1 Boot Key*1 |
| LED | Power LED(Red)*1 STAT LED(Green)*1 |
| Others | Working Temperature: -20 to 70 |
| Power | DC 5V/2A |
| OS Support | FriendlyCore(based on UbuntuCore-16.04), Lubuntu |
| Kernel version | Linux-4.14-LTS U-boot-2017.11 |
| PCB | Six Layer |

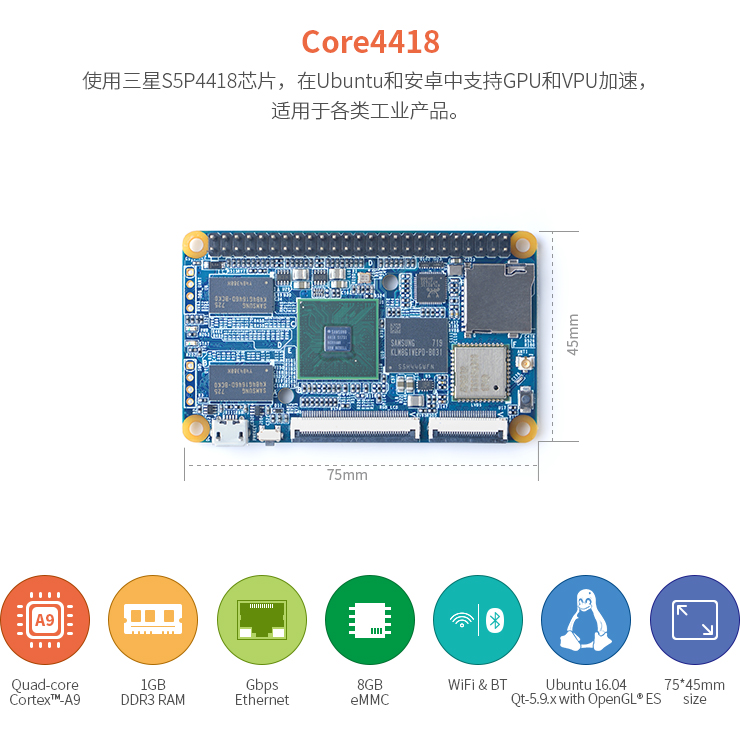

| Dimension | 75*45mm |
| Weight | 20.72g |
|
