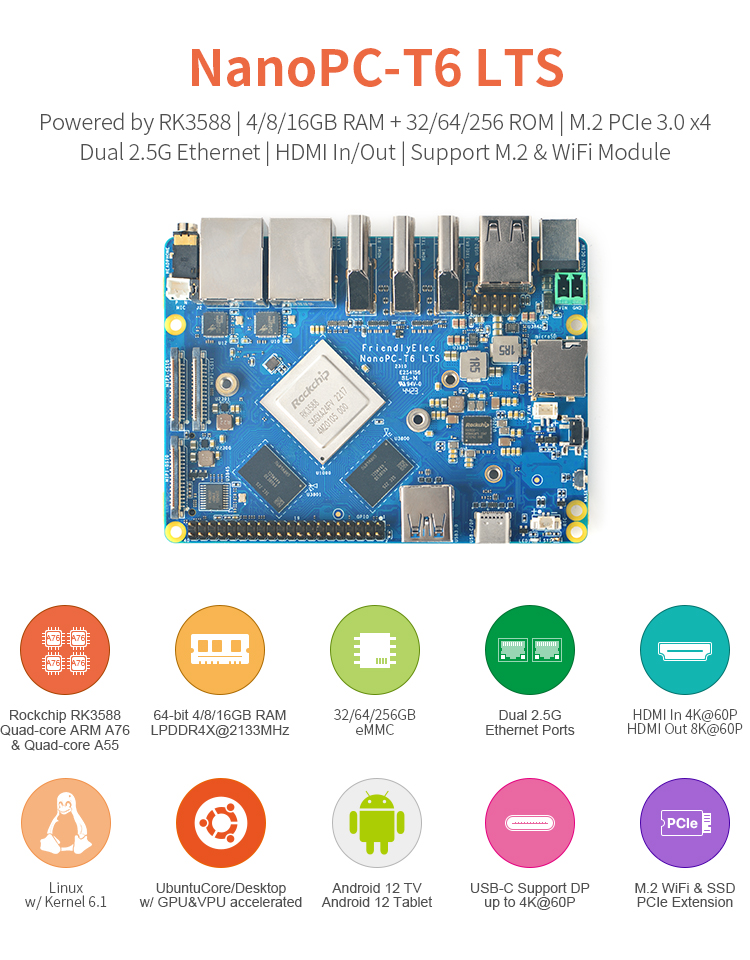

| CPU | Model: Rockchip RK3588 Number of Cores: Quad-core ARM Cortex-A76 + Quad Core Cortex-A55 Frequency: Cortex-A76(up to 2.4GHz), Cortex-A55(up to 1.8GHz) |
| GPU | Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2 |
| VPU | 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder |
| NPU | 6TOPs, supports INT4/INT8/INT16/FP16 |
| Memory | RAM: 64-bit 4GB/8GB/16GB LPDDR4X at 2133MHz |

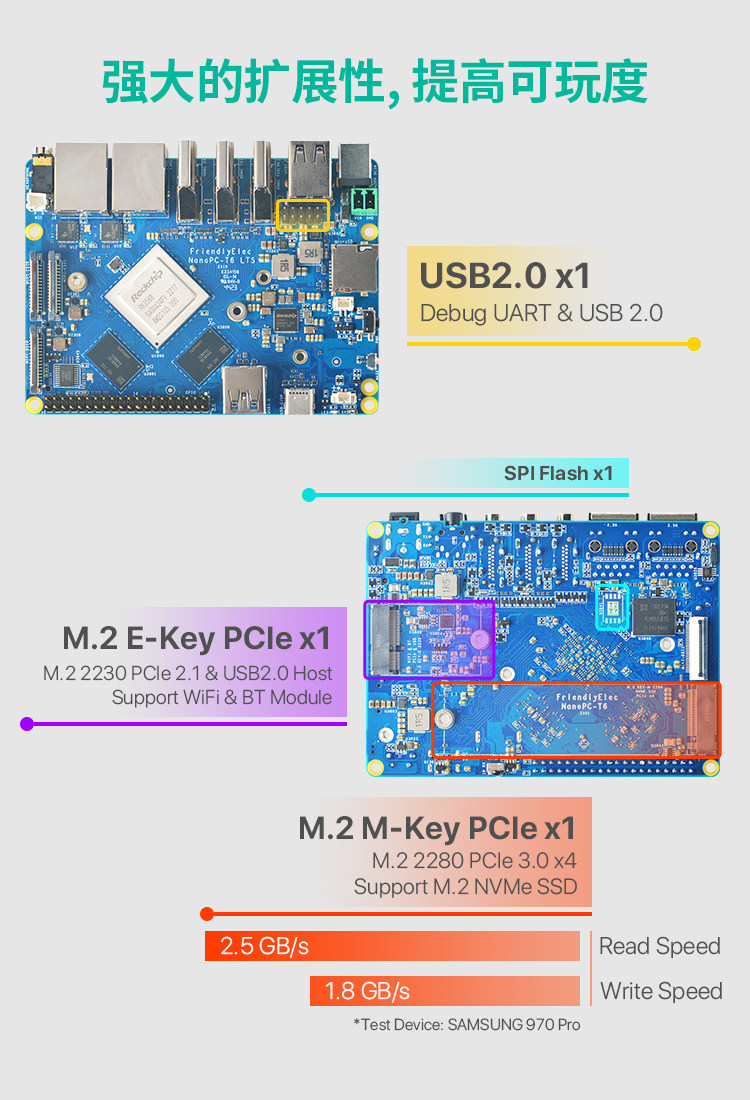

| Storage | eMMC: 32GB/64GB/256GB eMMC, at HS400 mode MicroSD Slot: MicroSD x1, support up to SDR104 mode PCIe 3.0: 1 x M.2 M-Key, PCIe 3.0 x4 for NVMe SSDs up to 2,500 MB/s Onboard M3 PCB nut for mounting M.2 2280 module |

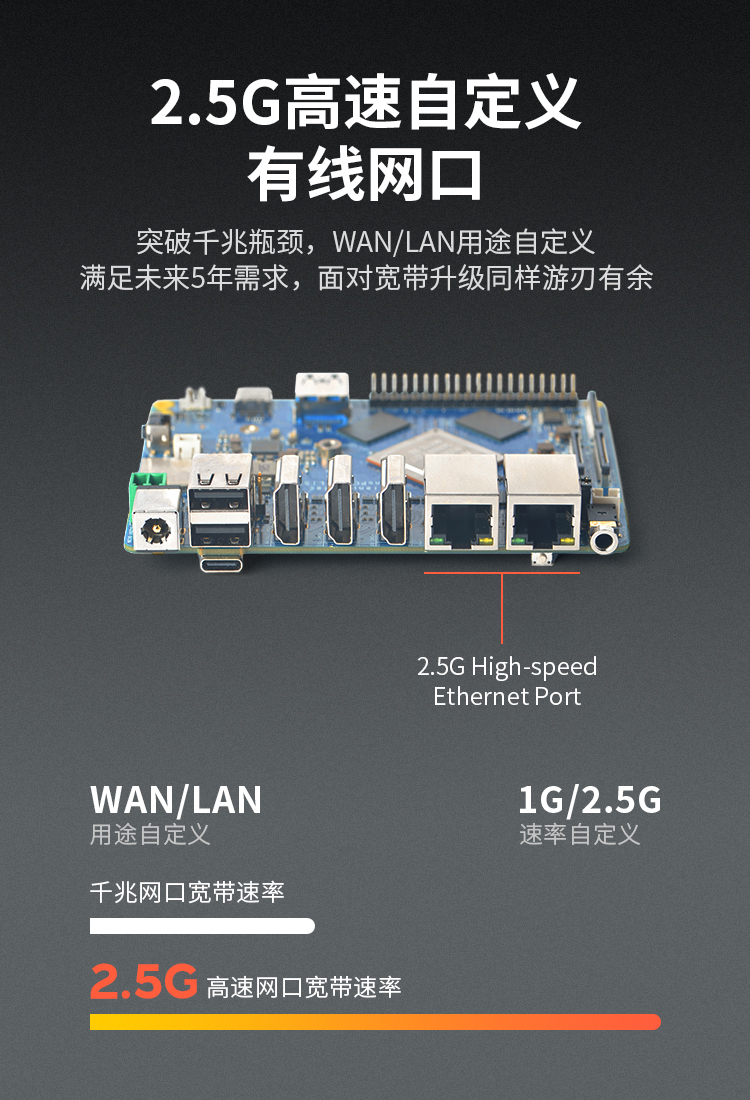

| Connectivity | Ethernet: PCIe 2.5G Ethernet Ethernet x2, RTL8125BG chip PCIe 2.1: 1 x M.2 E-Key, PCIe 2.1 x1 and USB2.0 Host, supports M.2 WiFi and Bluetooth Module Onboard M3 PCB nut for mounting M.2 2230 module |
| Video Input | 1x Standard HDMI input port, up to 4Kp60 2x 4-lane MIPI-CSI, compatible with MIPI V1.2 |
| Video Output | 2x Standard HDMI output ports: compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation one support displays up to 7680x4320@60Hz, another one support up to 4Kp60 Support RGB/YUV(up to 10bit) format 2x 4-lane MIPI-DSI, compatible with MIPI DPHY 2.0 or CPHY 1.1 |
| USB | 2 x USB 2.0, Type-A 1 x USB 3.0, Type A 1 x USB-C: Full function USB Type‑C™ port, support DP display up to 4K@60P, USB 3.0 |
| Pin-header | GPIO1: 40-pin 2.54mm header connector up to 2x SPIs, 6x UARTs, 1x I2Cs, 8x PWMs, 2x I2Ss, 28x GPIOs GPIO2: 10-pin 2.54mm header connector including Debug UART(3.3V TTL) and 2 x USB 2.0 Host |
| Button | 1 x MASK Button for eMMC update 1 x Reset Button 1 x Power Button |
| LED | 1 x SYS LED(Red) 1 x LED1 (Green) |
| Others | IR receiver: Onboard IR reciver, Acceptes 38KHz carrier frequency RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS Fan: 5V Fan connector Working Temperature: 0℃ to 70℃ |
| Power | 5.5*2.1mm DC Jack & 2-Pin 3.5mm pitch connector, 12VDC input |
| OS Support | - Android 12 - FriendlyCore Lite 20.04 - Proxmox VE - Debian 11 Desktop - Ubuntu 24.04 Desktop - OpenMediaVault |
| Kernel version | - Linux-6.1-LTS - U-boot-2017.09 |
| PCB | 8 Layer |
| Dimension | 110x80x1.6mm(without Case) / 86x114x30mm mm(with Case) |
| Weight | 91.5g（without Case) / 390g（with Case) |
|
