CPU Model: Rockchip RK3328
Number of Cores: Quad-Core Cortex-A53
Frequency: 4 x Cortex-A53 Up to 1.4GHz
Memory RAM: 1GB DDR4
Storage MicroSD Slot: MicroSD x1 for external storage up to 128GB
Flash: 8GB eMMC 5.1 Flash

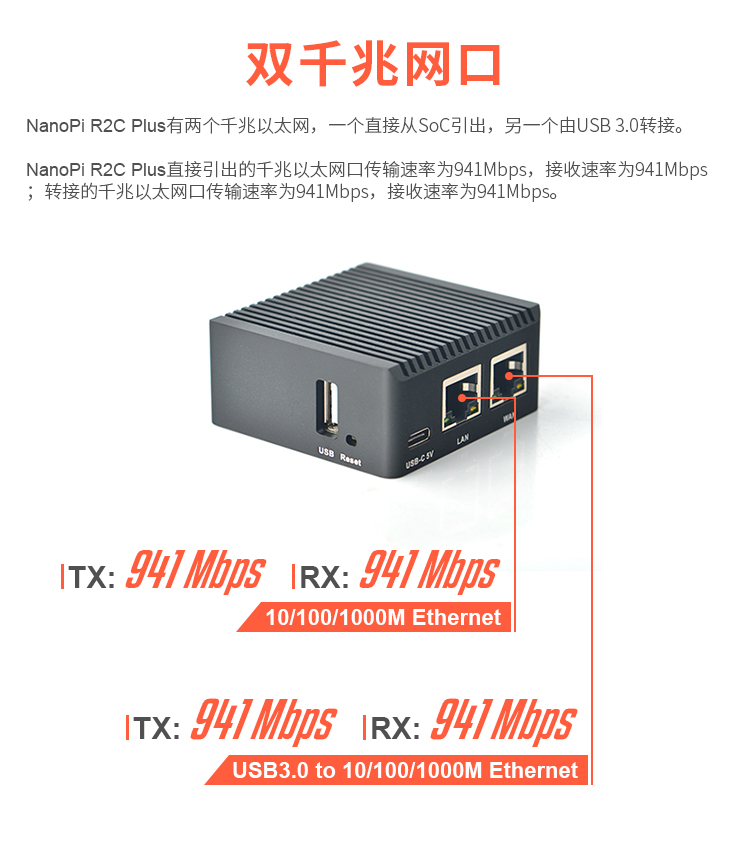

Connectivity Ethernet: Gbps Ethernet x1, YT8521S chip
USB 3.0 to Gbps Ethernet x1
USB USB 2.0 Host x1: USB Type A
USB-C x1: Power input(5V/2A) and Slave
Pin-header Serial Debug Port x1: 2.54mm pitch 3pin-header(3.3V TTL)
Button User Key x1
LED SYS LED(Red) x1
WAN LED(Green) x1
LAN LED(Green) x1
Others 8 Pin GPIO Connector:1 x I2C,1 x UART/2 x GPIOs
Fan Connector(ZH1.5-2A) x1
Working Temperature: 0°C to 80°C
Power DC 5V/2A

OS Support FriendlyWrt 21.02.1(64-bit)
FriendlyCore Focal Lite (Base on Ubuntu 20.04)

PCB 6 Layer

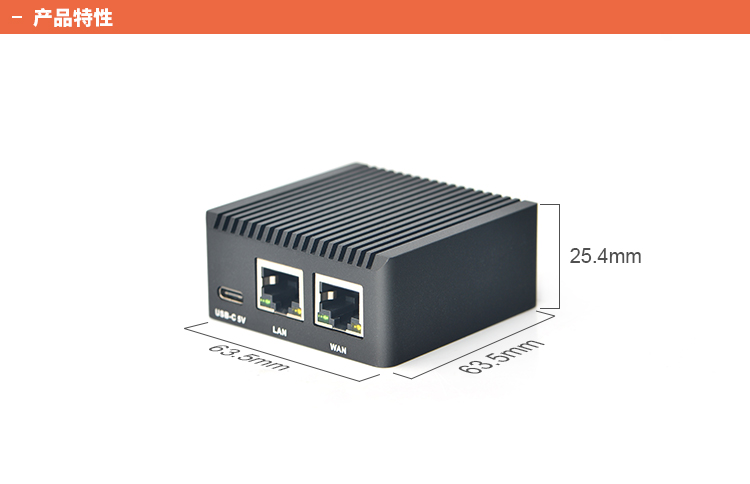

Dimension 63.5x63.5x24.5 mm(with Case)
Weight 151g(With Case)
